VW Group Glow Plug Connector Repair Kit

Performing maintenance on your VW, Audi, or Porsche diesel engine?

There's a very high chance that while working on or near the glow plug connectors you’ll run into at least 1 of 2 issues.

The rubber boots are cracked, brittle, or completely broken. (This is normal as the original boots are made from a thermoset material that degrades over time due to heat cycles and age)

The connectors for the pressure-sensing plugs have cracked. (This is common as their snap features are very thin.) Aftermarket wiring harnesses are available however they require cutting and splicing wires while also discarding the perfectly good factory electrical connectors.

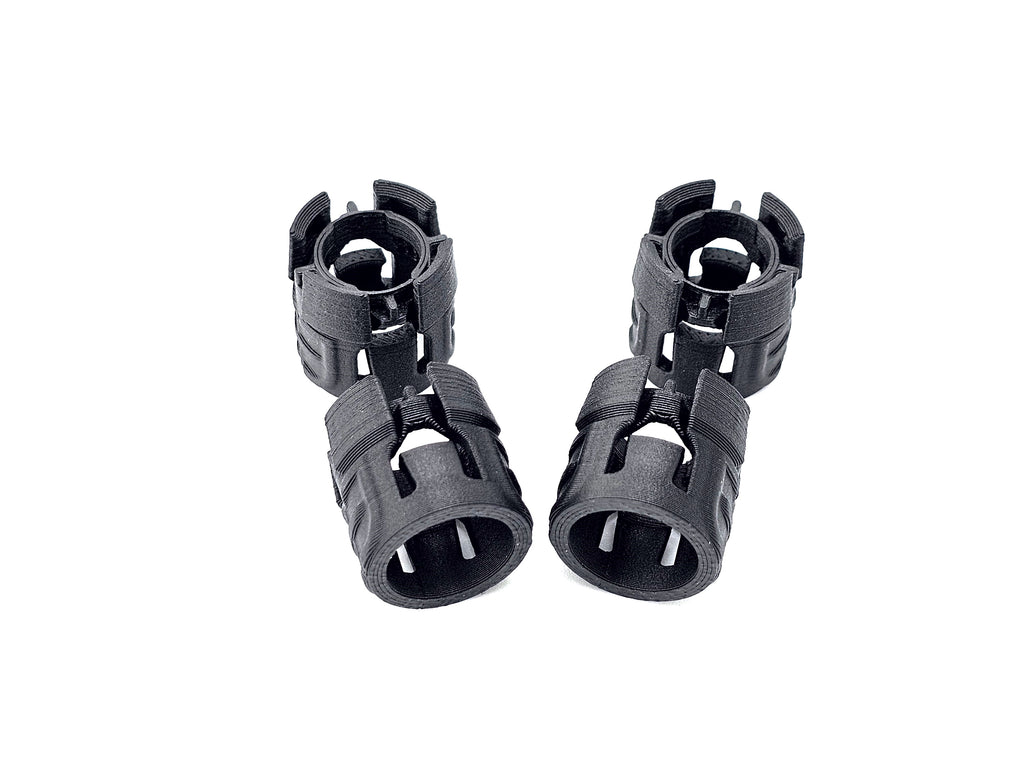

These retrofit kits provide a cleaner more professional solution! It allows you to remove the failed original connector housings and replace them with upgraded snap-fit housings made from high quality USA MADE automotive grade thermoplastic.

Options:

• 4 Cylinder Housing Repair Kit (SKU: VWGRP-GLWPLGRPR-4CYL)
  • All 4 cylinder engines use 4 pressure sensing glow plugs.
  • Engine codes: CKRA, CRUA, CVCA, CJAA, and CBEA.
  • Option contains:
    • 4pcs - Pressure sensing glow plug connector housings
• 6 Cylinder Housing Repair Kit (CATA) (Touareg & Q7) (SKU: VWGRP-GLWPLGRPR-6CYL2)
  • This engine has 2 pressure sensing glow plugs and 4 standard glow plugs
  • Option contains:
    • 2pcs - Pressure sensing glow plug connector housings
    • 4kits - Standard glow plug connector housings (8 snap-fit housing halves and 4 snap fittings)
• 6 Cylinder Housing Repair Kit (CPNB and CNRB) (Audi TDI models, Touareg & Q7) (SKU: VWGRP-GLWPLGRPR-6CYL1)
  • This engine has 1 pressure sensing glow plug and 5 standard glow plugs
  • Option contains:
    • 1pc - Pressure sensing glow plug connector housing
    • 5kits - Standard glow plug connector housings (10 snap-fit housing halves and 5 snap fittings)
• 10 Cylinder Housing Repair Kit (BKW & BWF)(Touareg) (SKU: VWGRP-GLWPLGRPR-10CYL)
  • This engine has 10 standard glow plugs
  • Option contains:
    • 10kits - Standard glow plug connector housings (20 snap-fit housing halves and 10 snap fittings)
• Pressure Sensing Glow Plug Connector Housing - 1 piece (SKU: VWGRP-GLWPLGRPR-PRSSNS)
  • Option contains:
    • 1pc - Pressure sensing glow plug connector housing This allows you to purchase as many of the individual pressure sensing glow plug connector housings as you would like!
• Standard Glow Plug Connector Housing – 1 kit (SKU: VWGRP-GLWPLGRPR-STN)
  • Option contains:
    • 1kit- Standard glow plug connector housing (2 snap-fit housing halves and 1 snap fitting) This allows you to purchase as many of the individual standard glow plug connector housing kits as you would like!

Standard glow plug connector housing installation steps

1. Remove the old connector housing

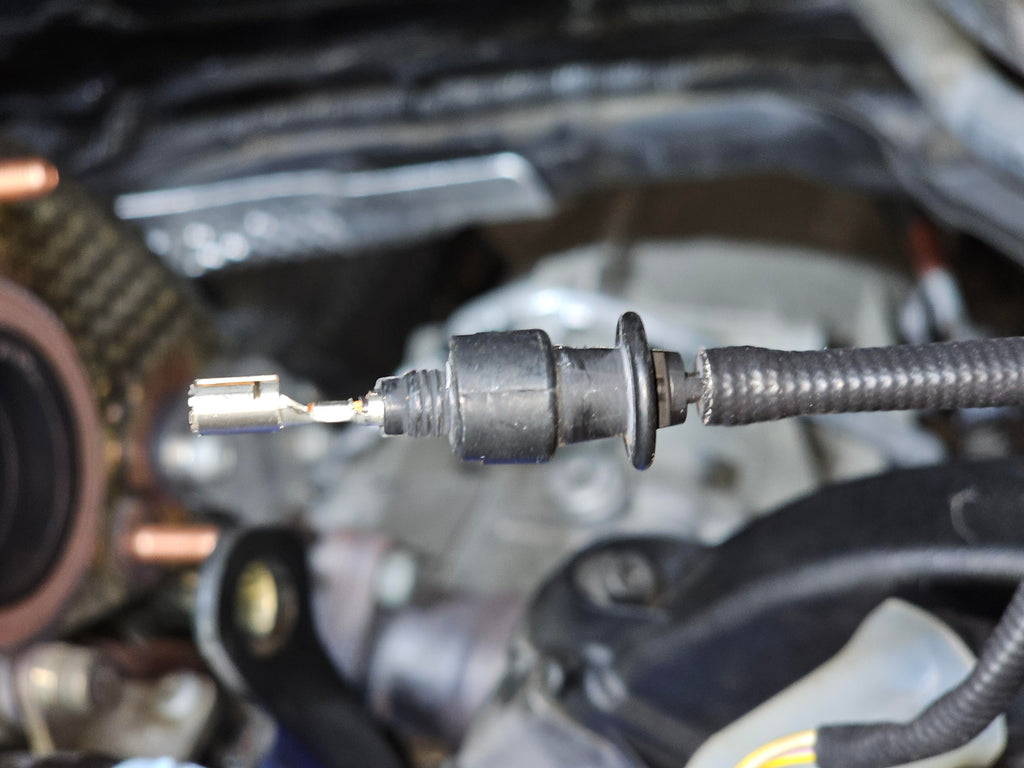

2. Carefully cut away the damaged plastic using side cutters. Be extremely careful not to nick or cut into the wires shielding! Inspect the wires
3. Check that the wires and shielding are intact. If the shielding or insulation is damaged, wrap the affected area with a thin layer of high-temperature electrical tape (such as 3M Super 33+).
4. Assemble the new connector

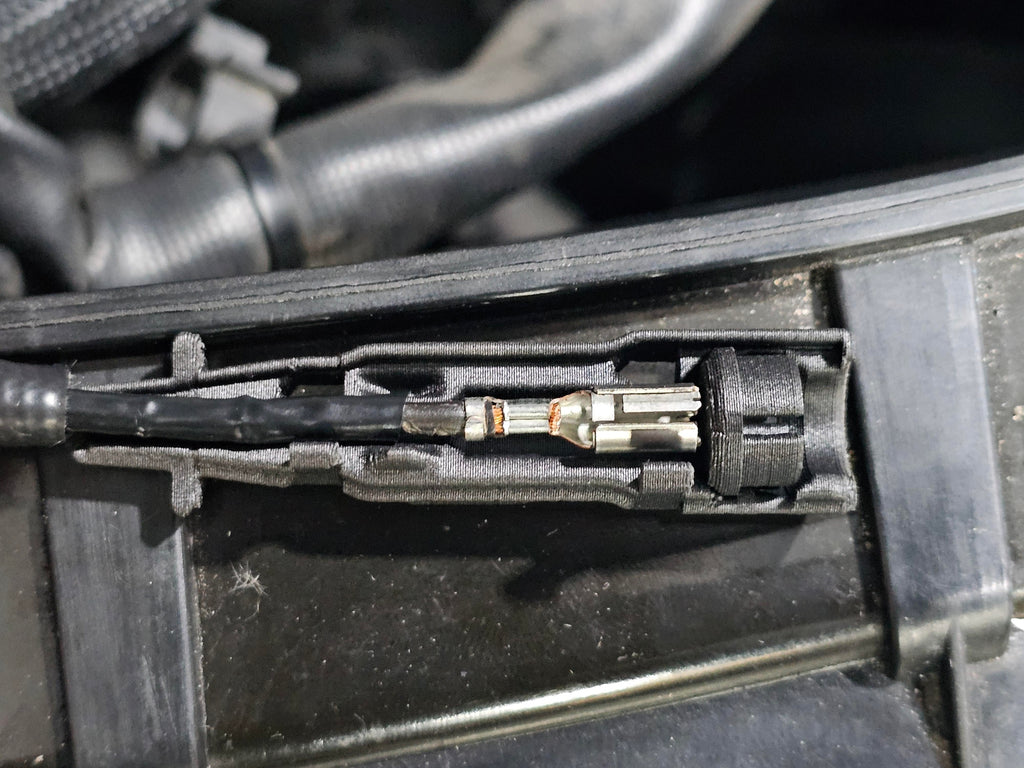

5. Place the wire terminal into one of the retrofit housing halves. Insert the snap fitting into the front of the housing half take care not to drop it!
6. Align and snap the second housing half into place.
7. You're done! (And you can reuse the pull handles that some of these TDIs come with)

Pro Assembly Tip: For easier installation, first seat the snap fitting into one housing half. Then partially assemble the two halves by partially engaging only the front clips (see photos). Slide the wire terminal in from the back until it fully seats against the snap fitting, then fully snap the rear of the housing closed. This simple upgrade restores a factory like appearance and provides long term reliability without any splicing or permanent modifications.

Enjoy your repair! We target to have all parts shipped within 2 business days of ordering however these parts are manufactured on demand and lead times may vary depending on backlog!
